Manual Range Handheld Digital Multimeter Overload Protection High Reliability And Safety

Name: Manual Range Handheld Digital Multimeter Overload Protection High Reliability And Safety
Brand: PEAKMETER
Price: 1 USD

Brand Name : PEAKMETER

Model Number : PM830

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 138x69x31mm Product Weight Approx. 170g

Display : 2000 Counts

Function 1 : Data Hold

Voltage Measurement : 600V AC/DC

Function 2 : Continuity test

Resistance Measurement : 200Ω~2MΩ

Product Name : Digital Multimeter

Contact Now

Mini Digital Multimeter , AC/DC Voltage , DC Current , Resistor , Continuity and Diode detection

Features of Mini Digital Multimeter

2000 counts display
Over range indication: display “OL”
Data Hold, Diode test, Continuity
Measure AC & DC voltage, DC current, Resistance

Specifications	Range	Accuracy
DC Voltage	200mV/2V/20V/200V	±(0.5%+2)
	600V	±(0.8%+2)
AC Voltage	200V/600V	±(1.2%+10)
DC Current	200µA/2mA	±(1.0%+3)
	20mA	±(1.0%+5)
	200mA	±(1.5%+5)
	10A	±(3.0%+10)
Resistance	200Ω/2kΩ/20kΩ/200kΩ	±(0.8%+2)
	2MΩ	±(1.0%+5)
Feature
Display	2000 counts
Data Hold	√
Diode Test	√
Continuity	√
General
Power Supply	DC9V 6F22 battery
Net weight	196g (battery is not included)
Gross weight	339g
Size	145mm74mm44mm
Safety Rating	EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

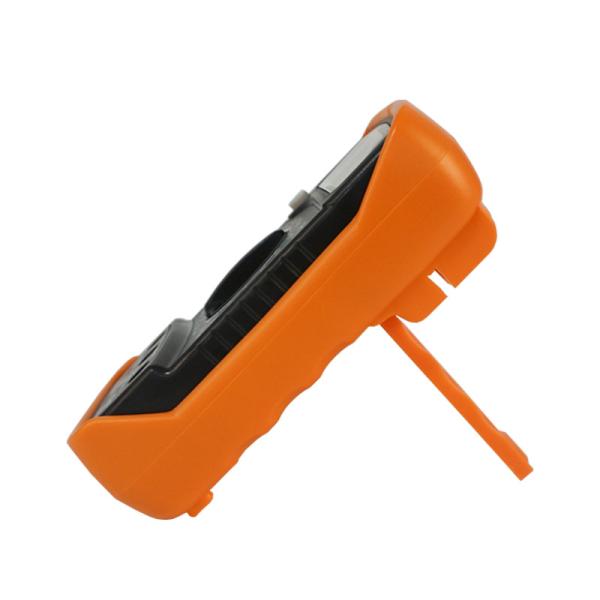

Description of Mini Digital Multimeter

PM830 is a Manual Range meter with complete functions, stable performance, low power consumption and fashionable structure. It is Mini size and uses 31-bit counting method that allows users to hold it easily with their hands.It can be used in the field of families, schools, smelting, communications, manufacturing, etc.

Digital multimeter is designed based on IEC61010 600V and pollution degree 2.
This meter can measure AC & DC voltage, current, resistance and test diode, continuity.

Service

All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface), and delivery fee will be borne by the customer.
Material and service fee will be charged when warranty is expired, and delivery fee will be charged.
To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs.
Customer can refer the maintenance order to get more information.

Manual Range Handheld Digital Multimeter Overload Protection High Reliability And Safety
