3 Pole / 4 Pole Earth Resistance Tester Confirm And Inspect The Grounding Engineering

Name: 3 Pole 4 Pole Earth Resistance Tester Confirm And Inspect The Grounding Engineering
Brand: PEAKMETER
Price: 1 USD

Buy cheap 3 Pole / 4 Pole Earth Resistance Tester Confirm And Inspect The Grounding Engineering product

Brand Name : PEAKMETER

Model Number : MS2308

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 260mm*125mm*280mm Product Weight Approx. 2.5Kg

Function 1 : PC Conmunication

3 pole/4 pole : 0.02Ω~300kΩ

Function 2 : Soil resistivity testing

Data Logging : 100 groups

Function 3 : Reviewing and Deleting Saved Data

Test Frequency : 94Hz/105Hz/111Hz/128Hz/AFC

Contact Now

Advanced Earth Resistance Tester Confirm and inspect the grounding engineering 3 pole/4 pole earthing-resistance testing

Peakmeter Photovoltaic System Solution:Peakmeter Photovoltaic System Solution.pdf

Features of Advanced Earth Resistance Tester

For testing the earthing-resistance of electrical equipment
For testing the interference voltage of external circuits
For testing the interference-current of external circuits
For testing the average soil resistivity
For testing resistance with 2-pole AC voltage
For testing resistance with positive/reversed 2-pole DC voltage
For saving test data and transferring data to PC for analysis
100 test data can be stored, which can be checked on the meter or upload to PC software
Digital/Analog dual display, LCD with backlight

Specifications	Function	Range
3 pole & 4 pole earthing-resistance test	Test voltage	AC 20V/48V
	Test frequency	94Hz/105Hz/111Hz/128Hz/AFC
	Earthing-resistance	0.02Ω~300kΩ
3 pole & 4 pole with Current Clamp	Test voltage	AC 20V/48V
	Test frequency	94Hz/105Hz/111Hz/128Hz/AFC
	Earthing-resistance	0.02Ω~20kΩ
Non-auxiliary-polar mode (Double Clamps)	Test voltage	AC 48V
	Test frequency	94Hz/105Hz/111Hz/128Hz/AFC
	Earthing-resistance	0.02Ω~150Ω
2 pole R~	Test voltage	AC 20V
	Test frequency	94Hz/105Hz/111Hz/128Hz/AFC
	Earthing-resistance	0.02Ω~300kΩ
2 pole or 4 pole R	Test voltage	DC 20V
2 pole or 4 pole R	Earthing-resistance	0.02Ω~300kΩ
Interfering voltage/ current/ frequency	Interfering voltage	1~50V DC/AC
	Interfering frequency	16HZ~400Hz
	Interfering current	20mA~2A
Soil resistivity	Test voltage	AC 20V/48V
	Test frequency	94Hz/105Hz/111Hz/128Hz/AFC
	Range	0.02Ωm~1000kΩm
RK (Wire compensation)	Test voltage	AC 20V/48V
	Test frequency	94Hz/105Hz/111Hz/128Hz/AFC
	Range	0.02Ω~30Ω
Features
Display		9999 counts
Test voltage have 20V/48V choice		√
2 pole resistance measurement		√
3 pole & 4 pole earth resistance measurement		√
Soil resistivity testing		√
Auto power off		√
Setting and time		√
Review and delete the held data		√
Data storage		100 groups
Reviewing and Deleting Saved Data		√
PC Communication		√
General
Power Supply	10*1.5V LR14 Batteries
Size	260mm125mm280mm
Clamp Size	φ51mm
Weight	2.5Kg
Safety Rating	EN61010-1, EN61010-031, EN61326-1, CAT Ⅲ 300V

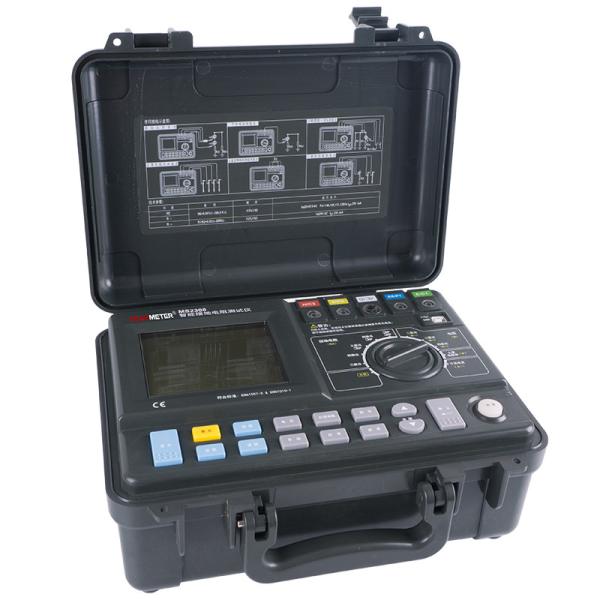

Description of Advanced Earth Resistance Tester

MS2308 is an advanced earthing-resistance testers integrated with multiple measuring methods, can be used for checking earthing-resistance of transformer, anti-lightning system, high-voltage power tower, and communication equipment, and its automatic frequency control (AFC) function can bring interference to an absolute minimum.

With 3-pole/4-pole earthing-resistance testing function, the earthing resistance of single-point earthing system and soil resistivity can be measured;
With 3 pole/4 pole method and current clamp, resistance of a single branch circuit in an inter-connecting network can be tested without disconnecting the earthing system;
With current clamp and voltage clamp and voltage clamp, resistance in an inter- connecting network can be tested without disconnecting the earthing system.
